Palm Chuck
Catalog

Features

Chucking system for highly efficient machining.
Advanced technology by experienced knowledges

Achieve high precision machining

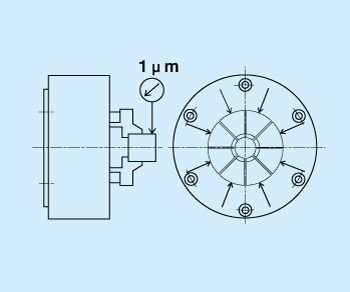

PALM CHUCK offers superior repeatability (1µm) based on diaphragm technology and 6 or 8 top jaws, and achieves high accuracy of roundness even with thin-wall workpiece.

Variety of optional functions

Workpiece stopper, through coolant and seating air sensor are easily feasible. QC (Quick Change) jaw is also available.

Achieve high speed rotating machining

Built-in counter weight minimizes a drop of clamping force by centrifugal force at high speed rotation.

Easy adjustment of clamping force

By built-in air cylinder, it’s possible to obtain proper clamping force for each application by adjusting air pressure and hydraulic circuit is not necessary.

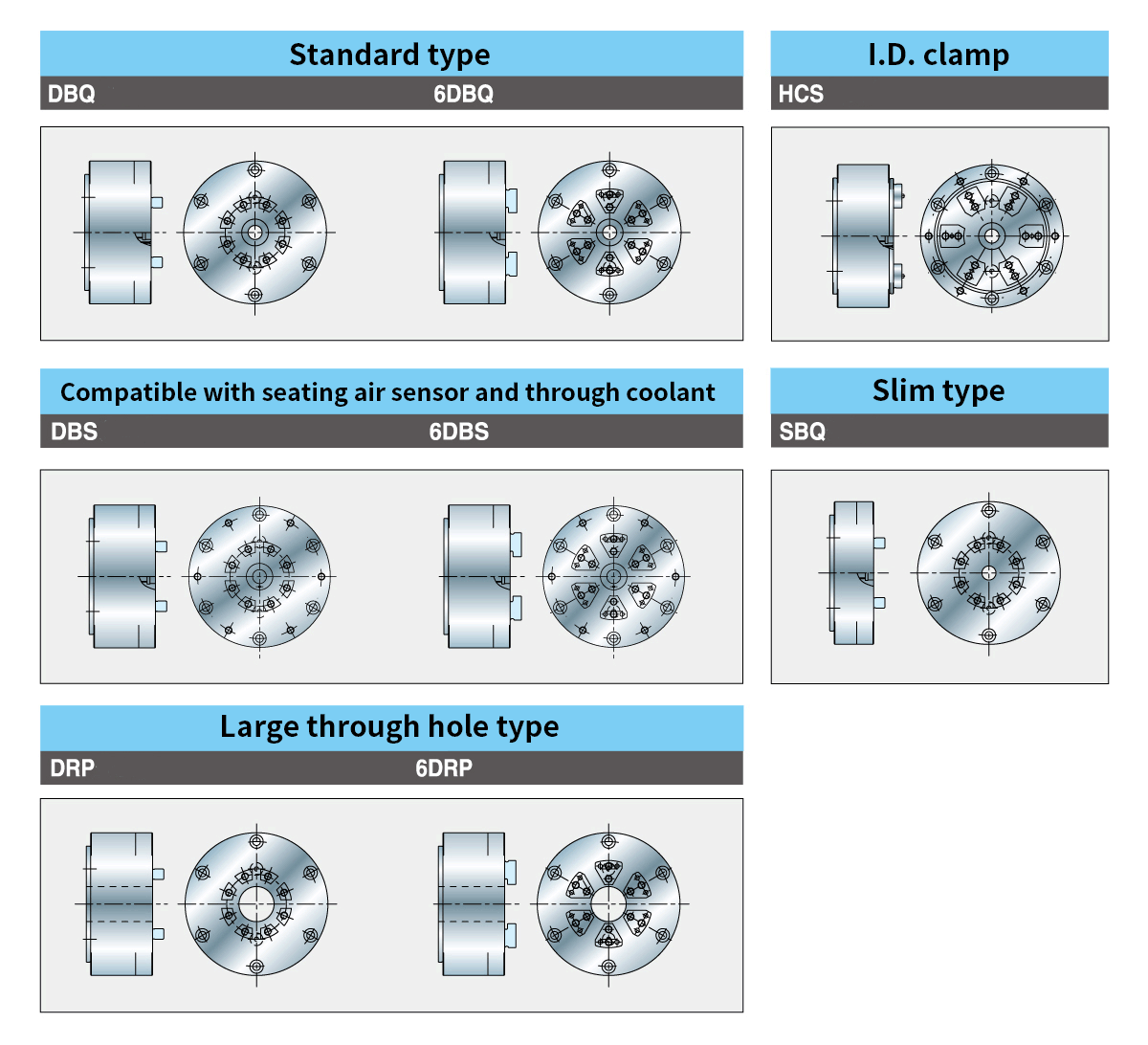

Line-up

		(6)DBQ	(6)DBS	HCS	SBQ	DRP	6DRP
Quick Change Jaws (only for 6-jaw type)		●	●	―	―	―	―
High clamping force by built-in double piston		●	●	●	―	●	●
Slim body		―	―	―	●	―	―
Large through hole		―	―	―	―	●	●
8-jaw for high roundness		●	●	―	●	●	―
6-jaw for high rigidity and chip evacuation		●	●	●	―	―	●
Use for O.D. & I.D. clamp		●	●	―	●	●	●
Use for only I.D. clamp		―	―	●	―	―	―
Compatible with seating air sensor and through coolant		―	●	●	―	―	―
Size	3inch	●	●	―	●	●	―
	4inch	●	●	●	●	●	―
	6inch	●	●	●	―	●	●
	8inch	●	―	―	―	●	●

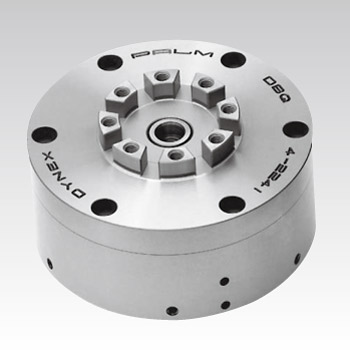

DBQ

Standard type (8-jaw)

High clamping force by built-in double piston
Seating air sensor or through coolant (for both, select DBS)
Easy to mount a stopper into center tap hole
Achieve high roundness with sufficient clamping force by 8-jaw

・Specifications

Chuck size		3inch	4inch	6inch	8inch
Max rotation speed	min^-1	12,000	12,000	8,000	3,500
Jaw travel (Jaw height : 20mm)	mm (dia.)	0.4	0.5	0.8	1.0
Air pressure	MPa	0.05～0.5	0.05～0.5	0.05～0.5	0.05～0.5
Mounting bolt		M5×6	M5×6	M6×6	M8×6
Weight	kg	1.4	2.3	5.2	12.5

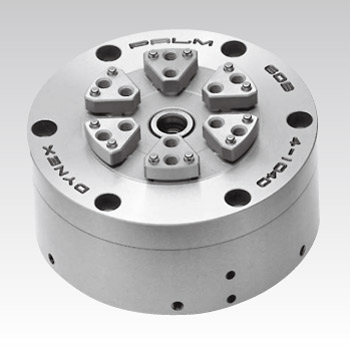

6DBQ

Standard type (6-jaw)

QC jaw option is available (4, 6inch)
Seating air sensor or through coolant (for both, select DBS)
Easy to mount a stopper into center tap hole
Achieve high rigidity and easy removal of cutting chips by 6-jaw

・Specifications

Chuck size		3inch	4inch	6inch	8inch
Max rotation speed	min^-1	12,000	12,000	8,000	3,500
Jaw travel (Jaw height : 20mm)	mm (dia.)	0.4	0.5	0.8	1.0
Air pressure	MPa	0.05～0.5	0.05～0.5	0.05～0.5	0.05～0.5
Mounting bolt		M5×6	M5×6	M6×6	M8×6
Weight	kg	1.4	2.3	5.2	12.5

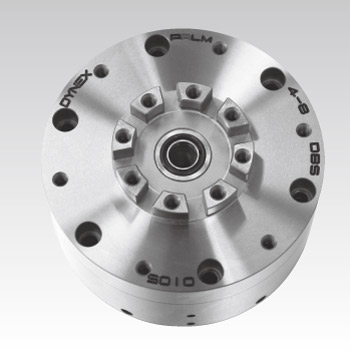

DBS

Compatible with seating air sensor and through coolant (8-jaw)

Seating air sensor and through coolant are simultaneously available
Easy to mount a stopper into center tap hole
Achieve high roundness with sufficient clamping force by 8-jaw

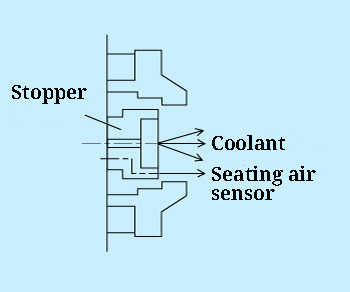

Compatible with through coolant and seating air sensor by using 4-passages air tube

・Specifications

Chuck size		4inch	6inch
Max rotation speed	min^-1	12,000	8,000
Jaw travel (Jaw height : 20mm)	mm (dia.)	0.5	0.8
Air pressure	MPa	0.05～0.5	0.05～0.5
Mounting bolt		M5×6	M6×6
Weight	kg	2.3	5.2

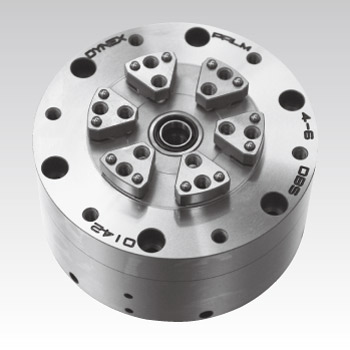

6DBS

Compatible with seating air sensor and through coolant (6-jaw)

QC jaw option is available (4, 6inch)
Seating air sensor and through coolant are simultaneously available
Achieve high rigidity and easy removal of cutting chips by 6-jaw
Compatible with through coolant and seating air sensor by using 4-passages air tube

・Specifications

Chuck size		4inch	6inch
Max rotation speed	min^-1	12,000	8,000
Jaw travel (Jaw height : 20mm)	mm (dia.)	0.5	0.8
Air pressure	MPa	0.05～0.5	0.05～0.5
Mounting bolt		M5×6	M6×6
Weight	kg	2.3	5.2

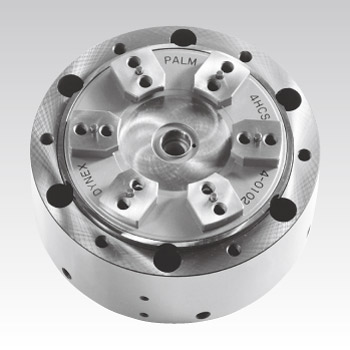

HCS

For I.D. clamp only (6-jaw)

Specialized I.D. clamp to minimize lift-up of workpiece
Seating air sensor and through coolant are simultaneously available
Easy to mount a stopper into center tap hole
Achieve high rigidity and easy removal of cutting chips by 6-jaw

・Specifications

Chuck size		4inch	6inch
Max rotation speed	min^-1	12,000	8,000
Jaw travel (Jaw height : 20mm)	mm (dia.)	0.5	0.8
Air pressure	MPa	0.05～0.5	0.05～0.5
Mounting bolt		M5×6	M6×6
Weight	kg	2.3	5.2

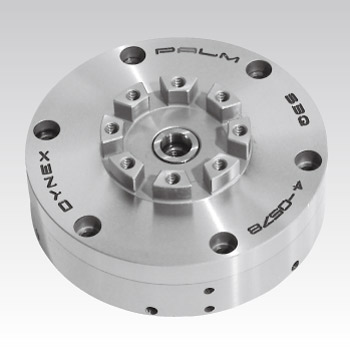

SBQ

Slim type (8-jaw)

Slim design and light weight
Achieve finer adjustment of clamping force than other types
Built-in counter weight minimizes a drop of clamping force at high speed
Achieve high roundness with sufficient clamping force by 8-jaw

・Specifications

Chuck size		3inch	4inch
Max rotation speed	min^-1	12,000	12,000
Jaw travel (Jaw height : 20mm)	mm (dia.)	0.4	0.5
Air pressure	MPa	0.05～0.5	0.05～0.5
Mounting bolt		M5×6	M5×6
Weight	kg	0.9	1.6

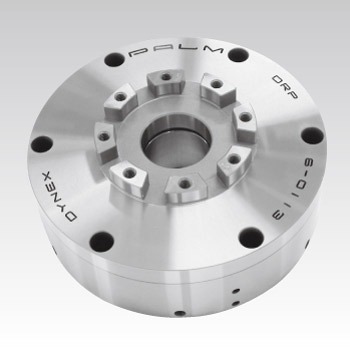

DRP

Large through hole type (8-jaw)

Large through hole for various kinds of workpiece
High clamping force by built-in double piston
Seating air sensor or through coolant available (for both, select DBS)
Achieve high roundness with sufficient clamping force by 8-jaw

・Specifications

Chuck size		3inch	4inch	6inch	8inch
Max rotation speed	min^-1	12,000	10,000	8,000	3,500
Jaw travel (Jaw height : 20mm)	mm (dia.)	0.4	0.5	0.8	1.0
Air pressure	MPa	0.05～0.5	0.05～0.5	0.05～0.5	0.05～0.5
Mounting bolt		M5×6	M5×6	M6×6	M8×6
Weight	kg	1.4	2.2	5.0	12

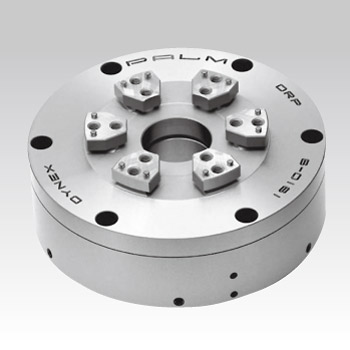

6DRP

Large through hole type (6-jaw)

Large through hole for various kinds of workpiece
High clamping force by built-in double piston
Seating air sensor or through coolant available (for both, select DBS)
Achieve high rigidity and easy removal of cutting chips by 6-jaw

・Specifications

Chuck size		4inch	6inch	8inch
Max rotation speed	min^-1	10,000	8,000	3,500
Jaw travel (Jaw height : 20mm)	mm (dia.)	0.5	0.8	1.0
Air pressure	MPa	0.05～0.5	0.05～0.5	0.05～0.5
Mounting bolt		M5×6	M6×6	M8×6
Weight	kg	2.2	5.0	12

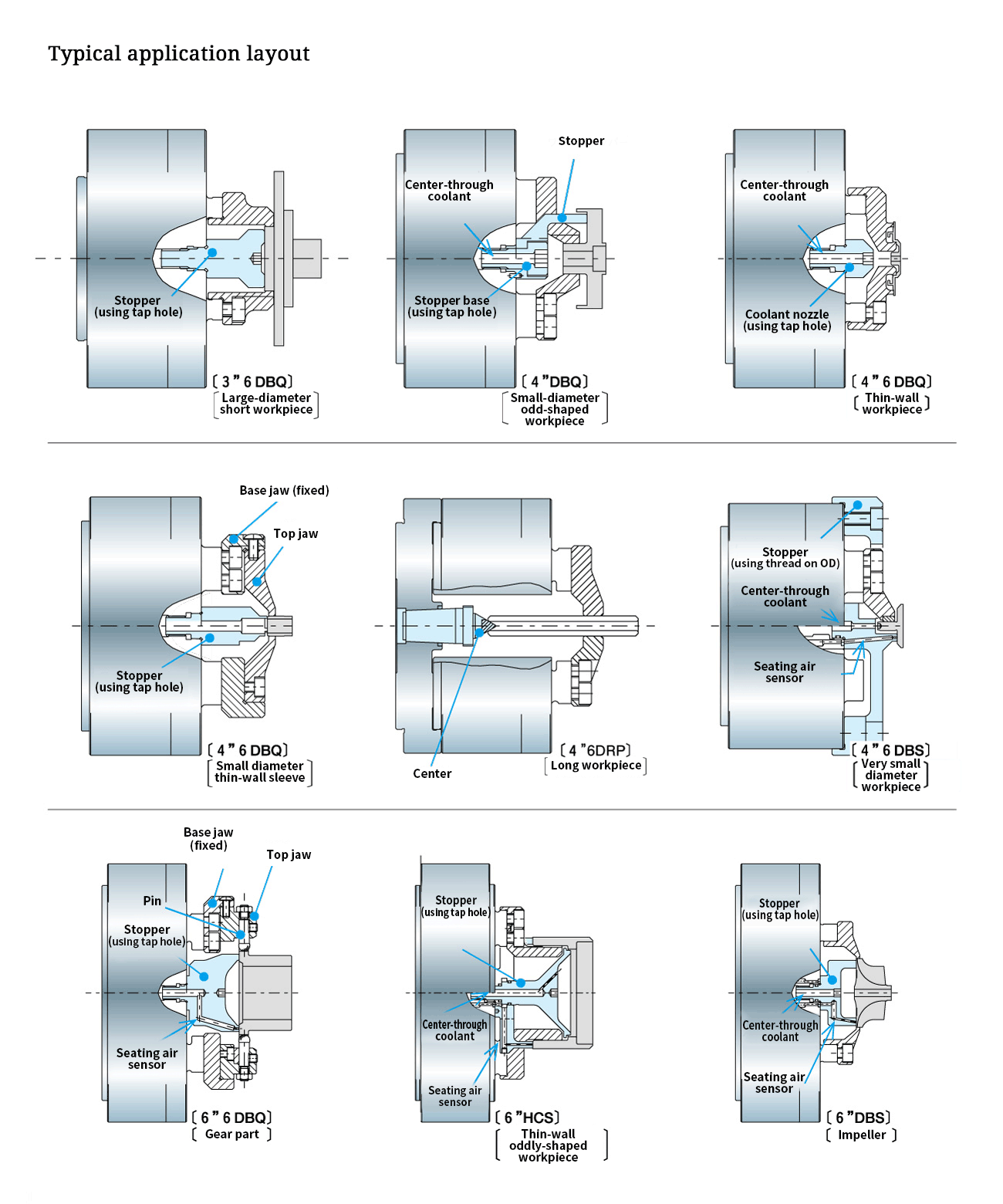

Applications

Quick Change Jaw

Large through hole type (6-jaw)

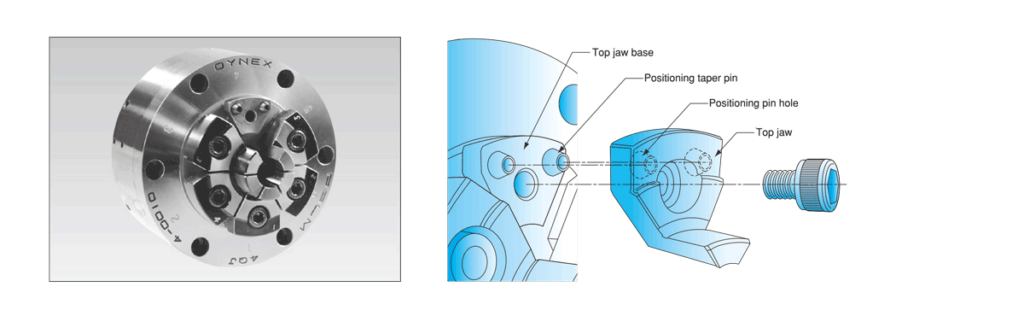

Improve set up time drastically by easy jaw exchange with high accuracy.
Accurate positioning and enough engagement by 2 positioning taper pins.
Quick Change (QC) Jaw is available for 6DBQ type and 6DBS type.
Customized top jaw is available upon request.

Chuck	Type	Size	Remarks
6DBQ	PALM4-DQJ	4inch	Standard type
6DBQ	PALM6-DQJ	6inch	Standard type
6DBS	PALM4-DSQJ	4inch	Compatible use of seating air sensor and through coolant
6DBS	PALM6-DSQJ	6inch	Compatible use of seating air sensor and through coolant
