Mandrel Chuck
TODA SEIKI CO., LTD.
Features
Monolithic structure allows supporting by both centers
Easy clamping with T-wrench
Runout accuracy 5μm or less
High repeatability
Main applications :
Grinding, Assembly, Inspection/measurement
Collet style
Easy maintenance with collet type
Expansion/contraction : Φ0.5mm

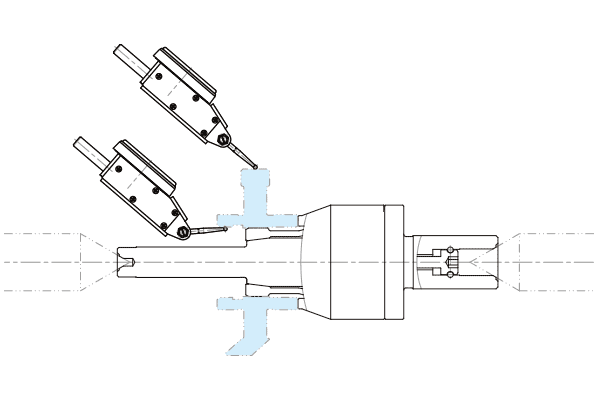

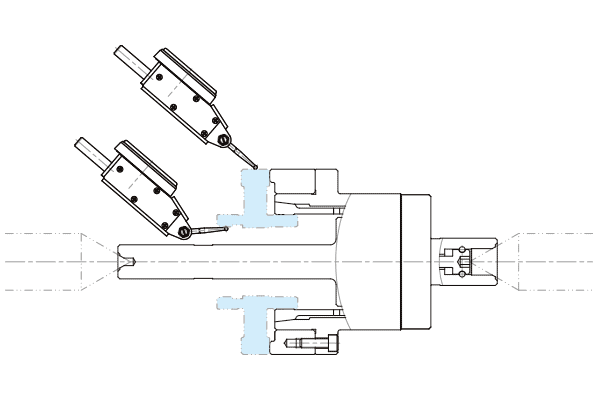

O.D. clamp type
Simultaneous runout measurement of inner and outer diameter is possible
No re-clamping required, contributing to accuracy and time savings

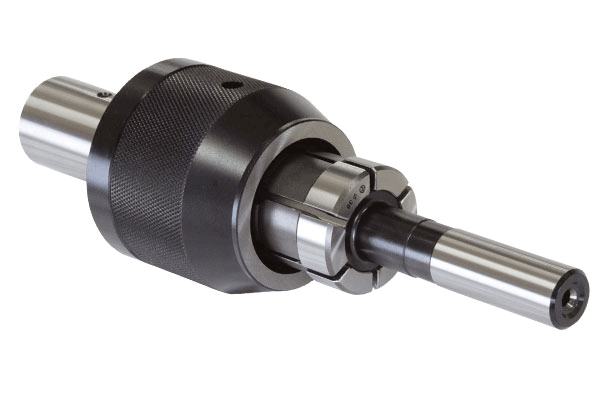

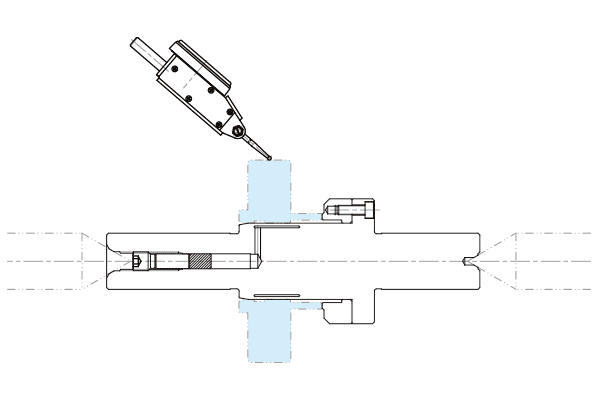

I.D. clamp type
Simultaneous runout measurement of inner and outer diameter is possible
Hydraulic style

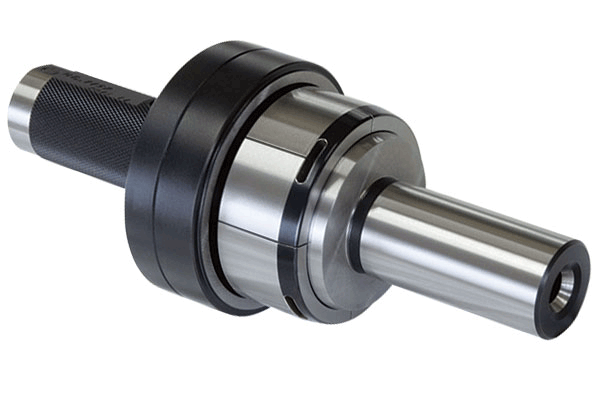

Hydraulic clamp type
Expansion/contraction : Φ0.02 to Φ0.1 (depending on clamping diameter)
Extremely small distortion of workpiece during clamping
Optimum for clamping thin-wall workpiece
