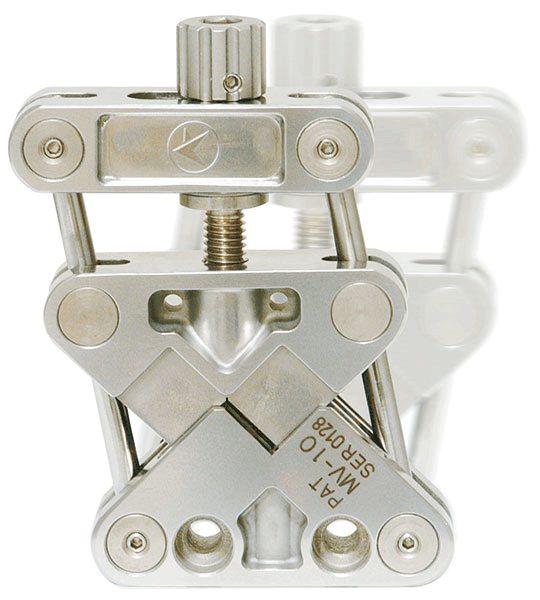

Features

• It clamps any shapes of workpiece quickly and accurately.
• Vise moves freely, and clamps any shapes of workpiece easily, rapidly and securely.
• Excellent reliable centering and standardization of workpiece.
• Several workpieces can be clamped simultaneously, significantly reducing machining time.
• It can be mounted on tooling systems from various manufacturers
• Ideal for small workpieces for high-precision MC, grinding, EDM, engraving, etc…
• Also, ideal for holding sample items for projector, CMM, etc…

Example of Use

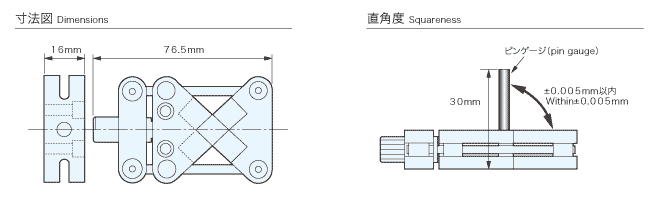

Dimensions and Performance

Odd-shaped workpiece

Option (Sold separately)

The use of an optional base increases processing variation.

Vertical	Side	Height
80mm	80mm	30mm
