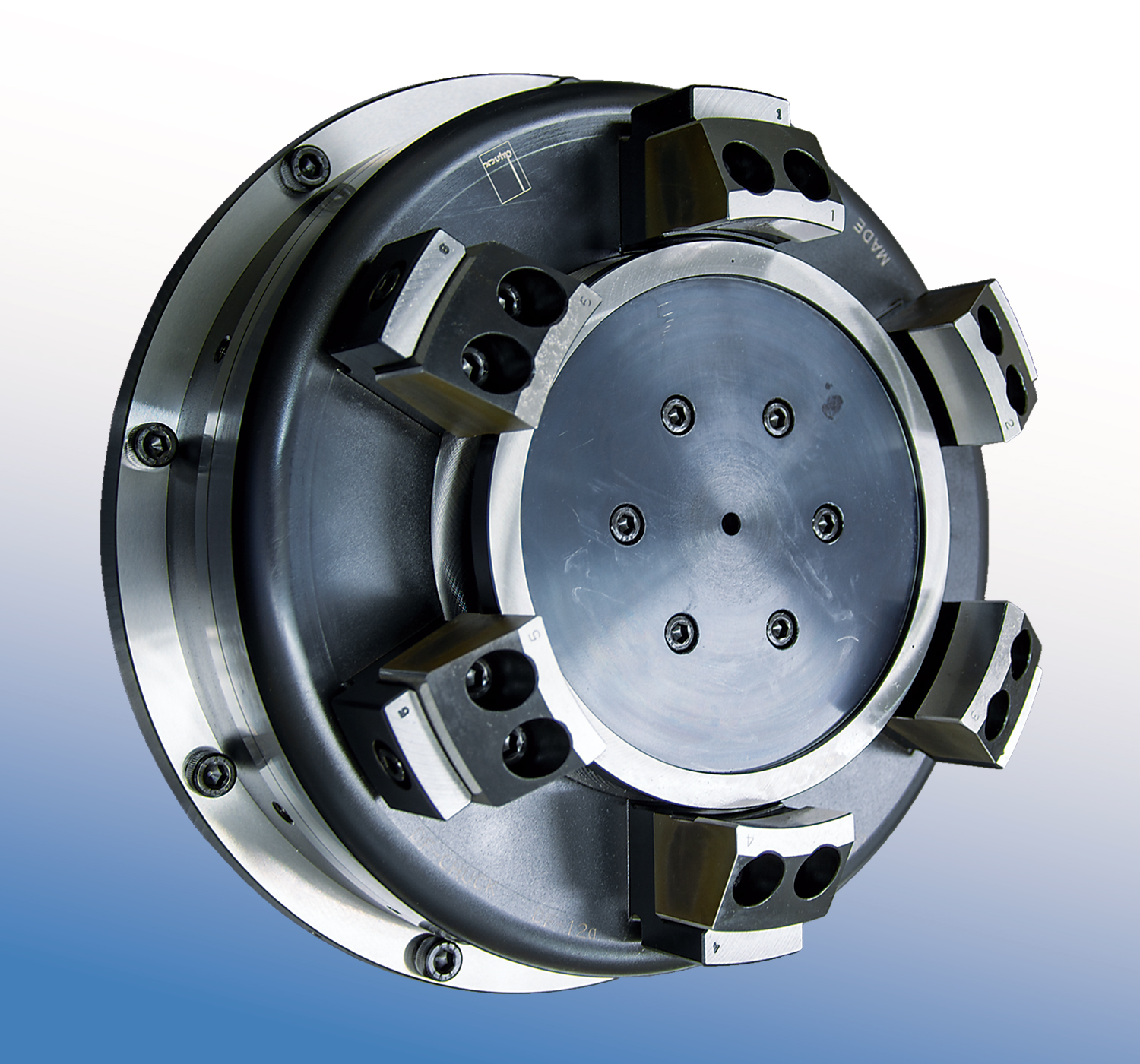

1. 2 sizes are available, 12inch and 10inch.
2. Max clamping diameter : O.D. 165mm (DF12a) / O.D. 125mm (DF10a)
3. This chuck clamps workpiece by elastic deformation of diaphragm.
4. Excellent repeatability and roundness are achieved by diaphragm and 6-jaw design.
5. Top jaws close in pull-down direction so workpiece is clamped by top jaws on a stopper in close contact.
6. Thanks to its built-in air cylinder, fine adjustment of clamping force is possible. Clamping deformation of workpiece is minimized, even if it’s thin-wall workpiece.

Main functions

1. Air circuit for seating air sensor.
2. Through coolant circuit.
3. Air circuit for increasing clamping force.
4. You can increase O.D. clamping force by pulling U-shaped spring by built-in air cylinder.
5. Combination of base jaw and top jaw (exchanging repeatability of top jaw : 5µm)
6. For both horizontal and vertical machine
7. For turning, machining and grinding
8. Specifications

Specifications

1. Max rotation speed 1,000min-1
2. Max air pressure 0.5MPa
3. Jaw travel 0.35mm×2=0.7mm (at top jaw height 40mm)
4. Repeatability : within 8µm on master workpiece
5. Weight of chuck body 32kg (DF12a) / 23kg (DF10a)
